Valves for transfomer oils
Product range ENERGY
This product range ENERGY is specially developed for use in oil cooling circuits of transformers and meets the highest requirements for quality and reliability.
The versions in gunmetal and the offshore variant Gbz 10 offer particularly good corrosion and seawater resistance.
Our valves are manufactured in our own foundry with approvals from DNV and LR. That enables us to react flexibly to your requirements and to offer you our product range in many different designs:

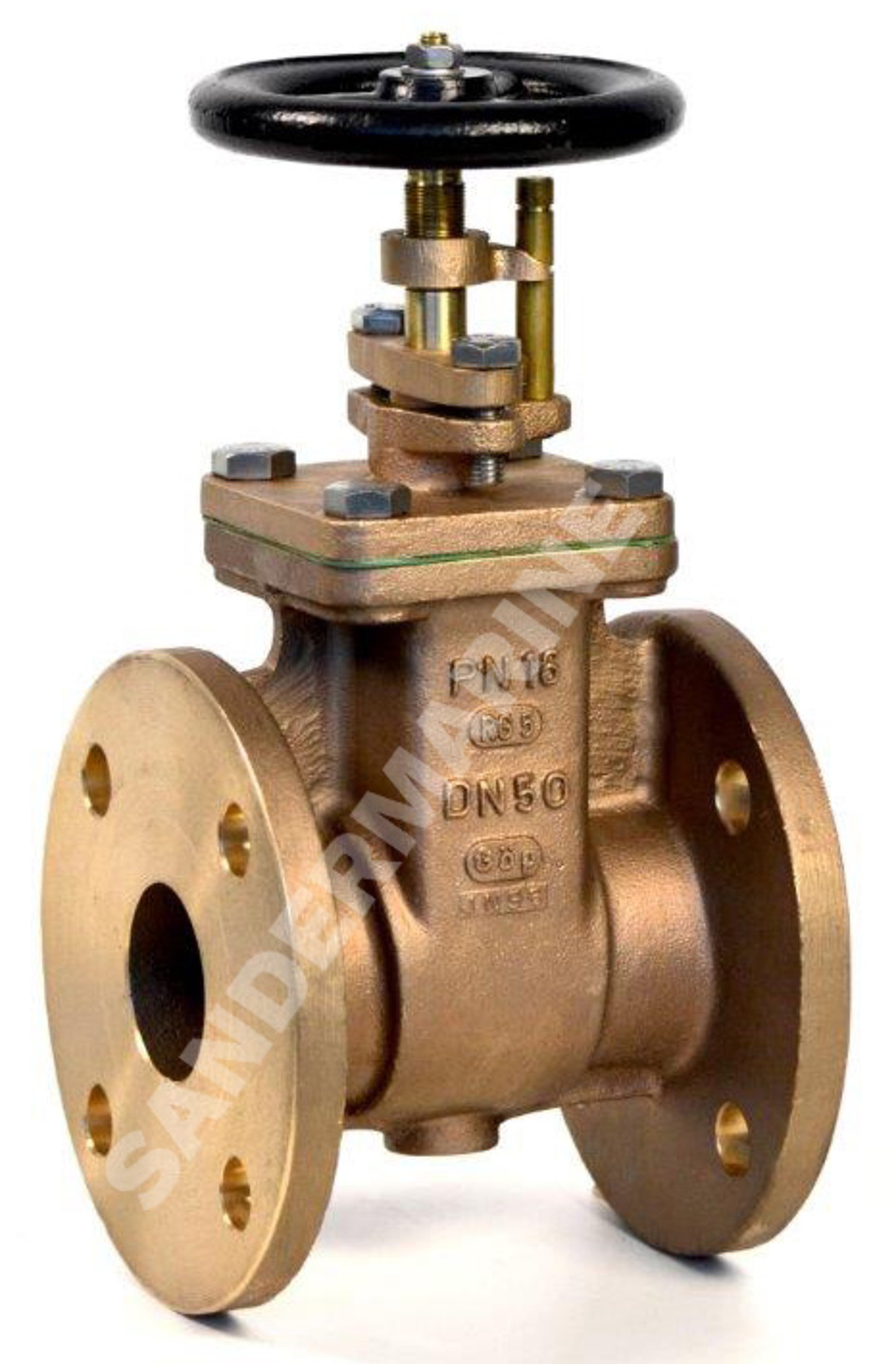

Gate valves acc. to DIN EN 12288
Product features:
• nominal diameter DN 15 up to DN 300
• nominal pressure up to PN 6
• temperature range from -60°C up to +115°C
• with screwed ends or flange connection
• face-to-face acc. to DIN or ANSI
• flanges acc. to DIN, ANSI or JIS
• on request with indicator
• on request lockable

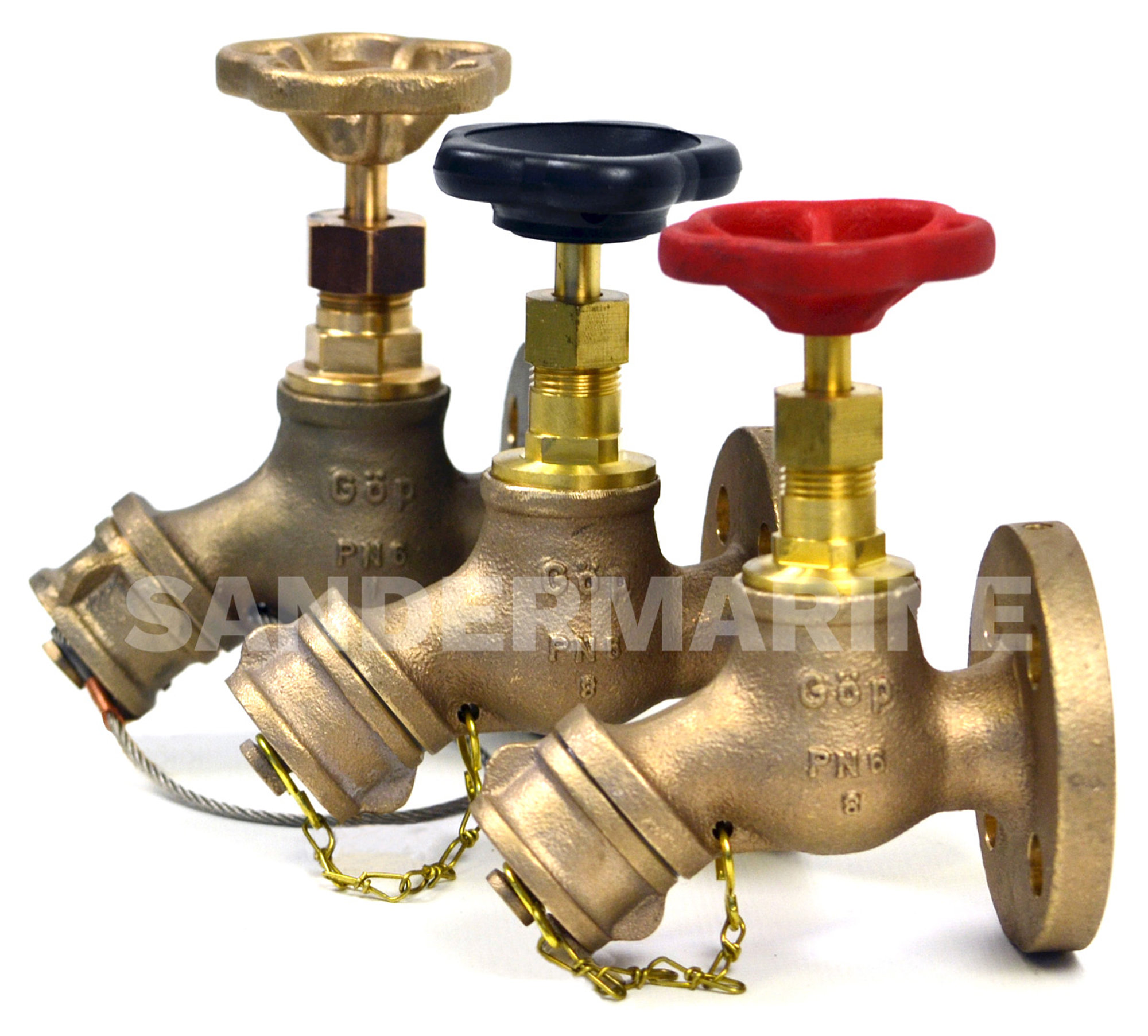

Outlet valves acc. to DIN 42568
Product features:
• nominal diameter DN 15 and DN 32
• nominal pressure up to PN 6
• temperature range from -60°C from +115°C
• flanges acc. to DIN, ANSI or JIS
• outlet with male thread and
screwed cap

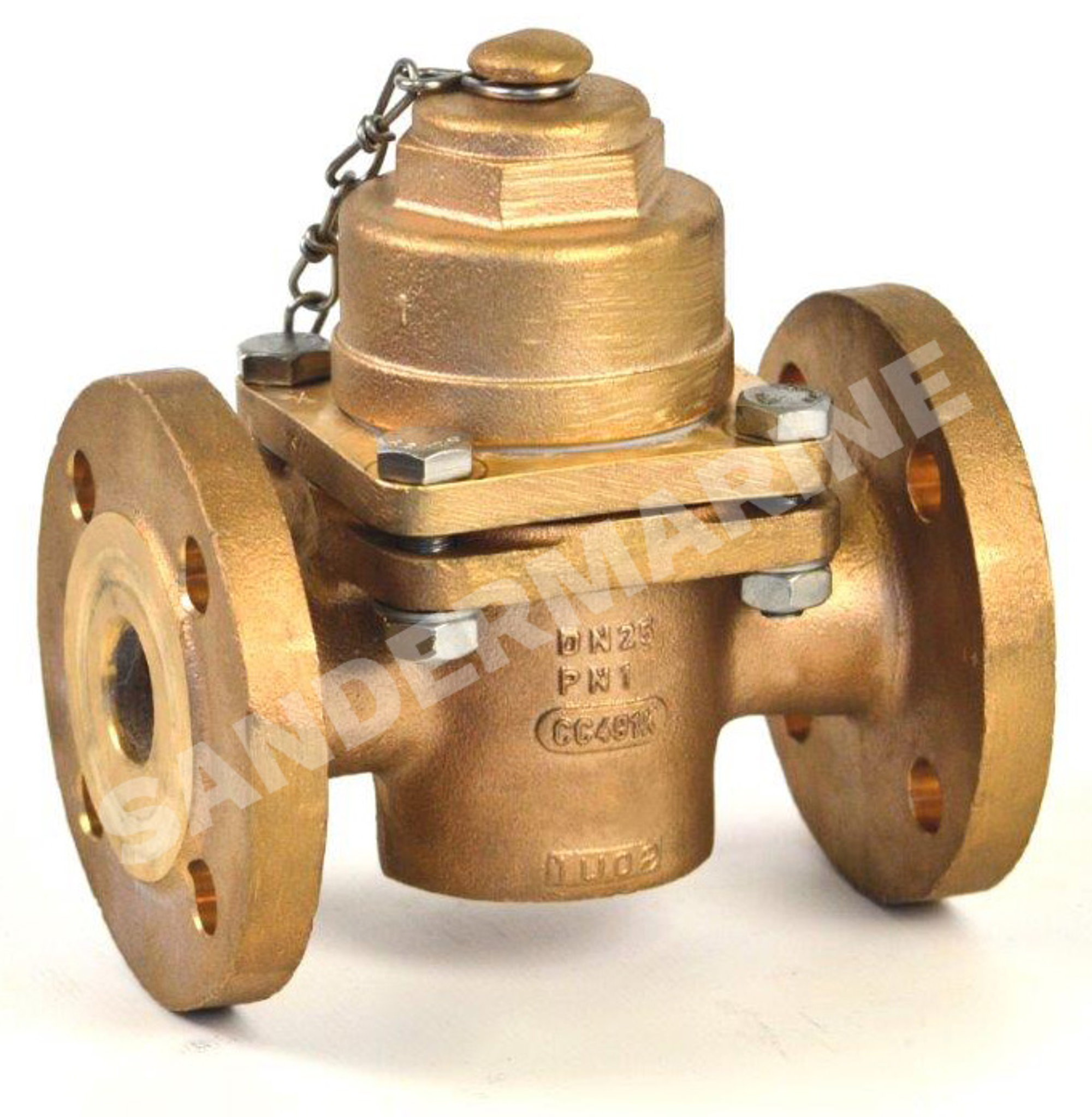

Plug cocks acc. to DIN 42544
Product features:
• nominal diameter DN 25 and DN 80
• nominal pressure up to PN 5
• temperature range -25°C up to +115°C
• flanges acc. to DIN, ANSI or JIS

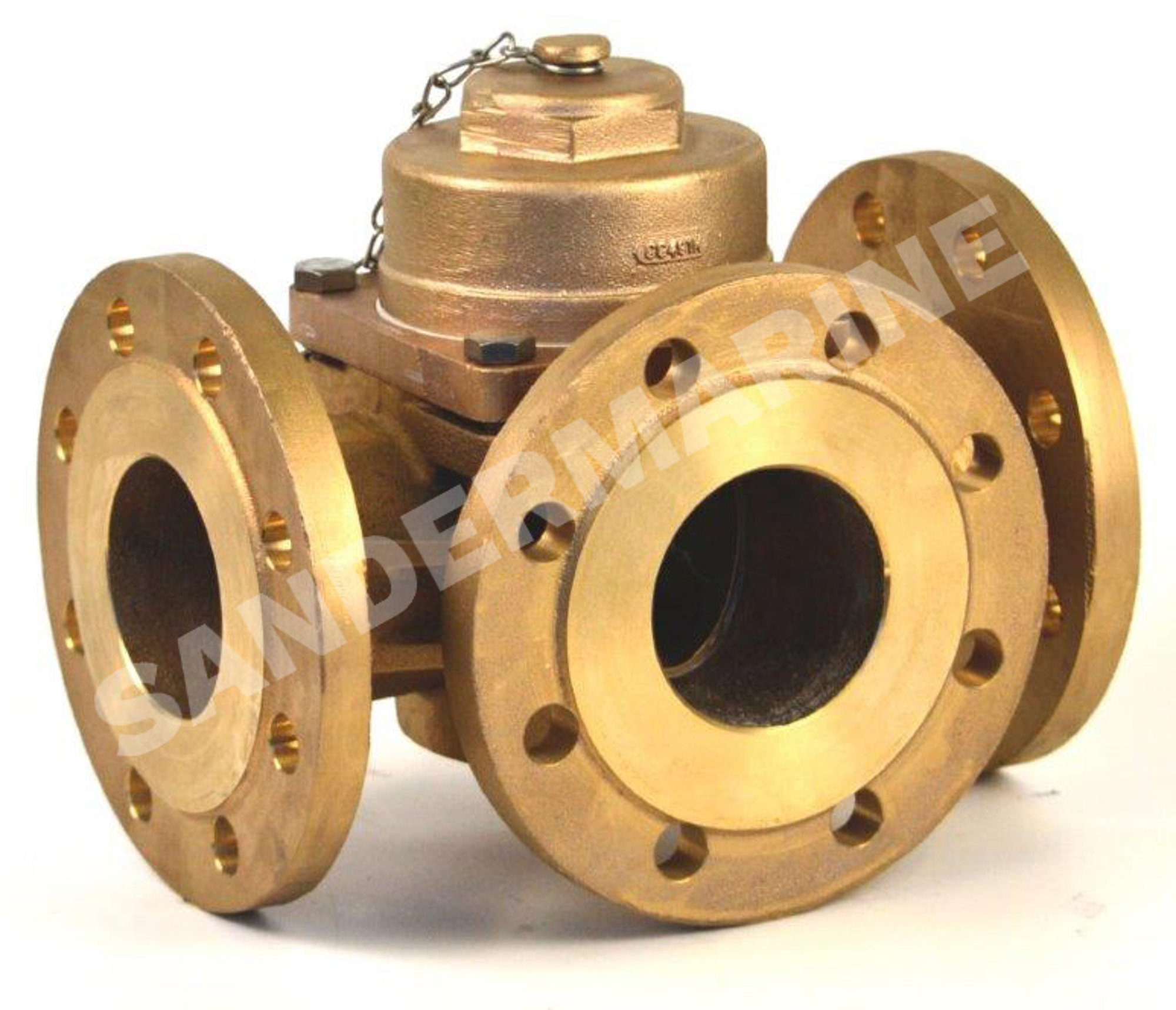

3-way plug cocks acc. to DIN 42544
Product features:
• nominal diameters DN 25, DN 50 and DN 80
• nominal pressure up to PN 5
• temperature range from -40°C up to +115°C
• flanges acc. to DIN, ANSI or JIS
• with L-plug or T-plug
• with gland or with cap
You are searching for furthermore designs, different materials, diameters, working pressures or temperature ranges ?
Please ask us ! We are pleased to help you.

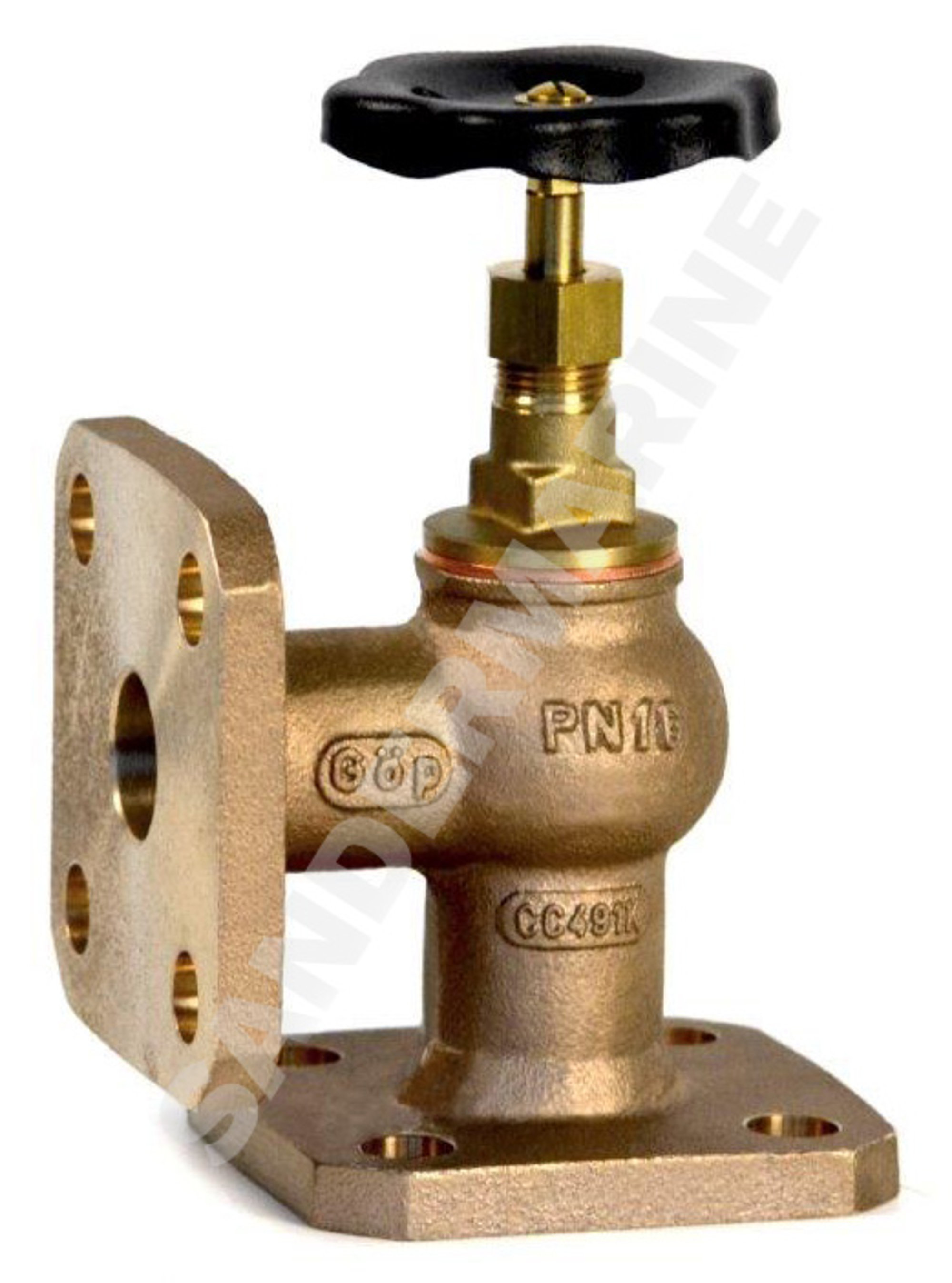

Globe valves with square flanges for transformer oils in various designs

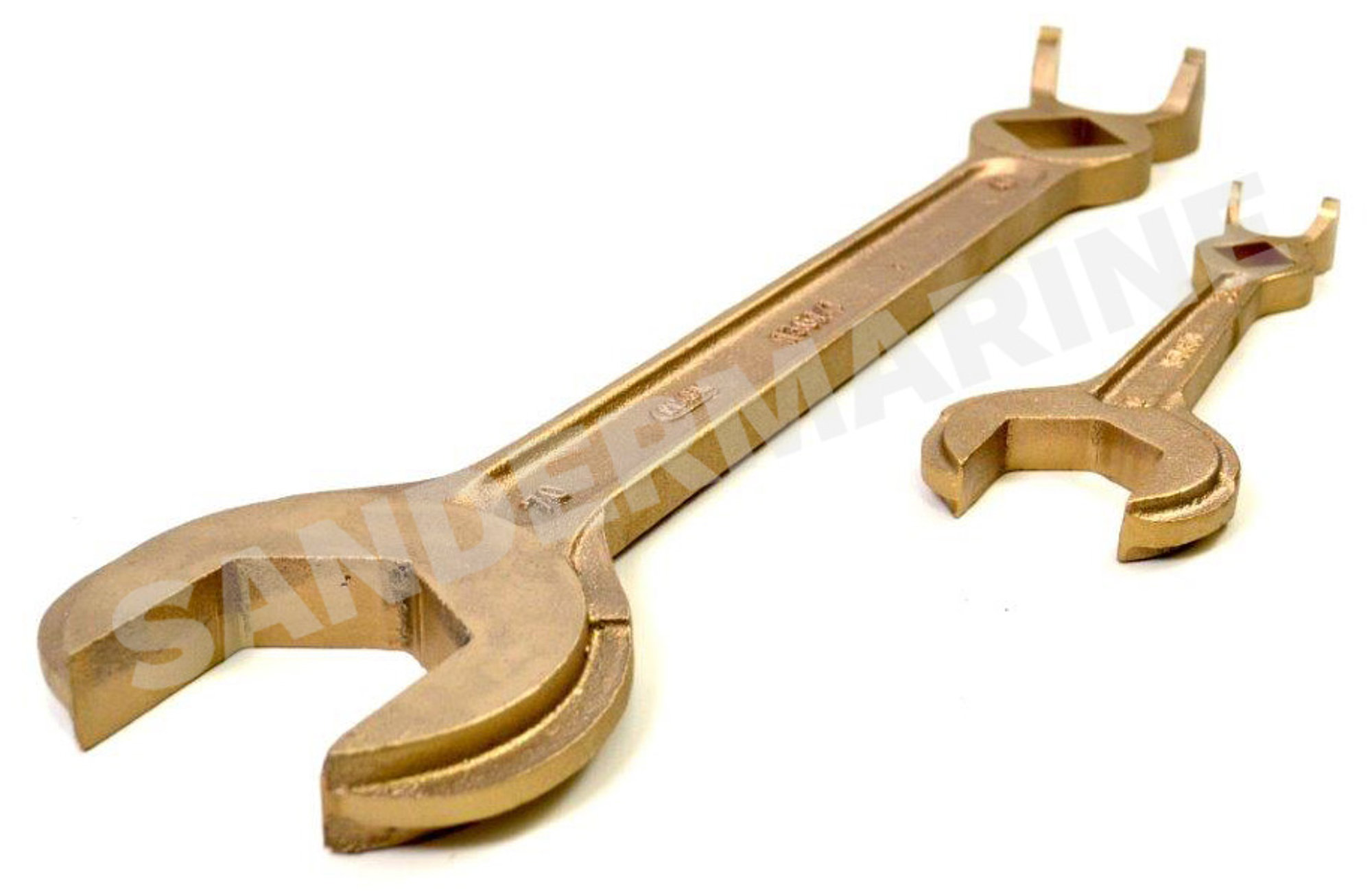

Control handles in various designs for valves for oil-immersed transformers
